DPP-160r GMP Requirements Thermoforming Alu Pvc Blister Packaging Machine

Name: DPP160r GMP Requirements Thermoforming Alu Pvc Blister Packaging Machine
Brand: Rich Packing
Price: 14008 USD

Wholesale DPP-160r GMP Requirements Thermoforming Alu Pvc Blister Packaging Machine from china suppliers

Brand Name : Rich Packing

Model Number : DPP-160r

Certification : CE/ISO 9001/SGS

Place of Origin : Guangzhou, China

MOQ : 1 pcs

Price : $14008-$14700 per pcs

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 50 pcs/month

Delivery Time : 5-8 working days

Packaging Details : Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.

Production Capacity : 4200 pellets per hour

Max. Shaping Dia. And Depth : 130*100*15mm Max. Depth 26mm（custom-made）

Blanking : 20～50 times/min

Total Power : 3.78kW

Standard Plate : 80*57mm

Standard Travel Range : 40～110mm

Noise : <75dBA

product : DPP-160 Plate tablet capsule pill Automatic Blister Packing Machine

Voltage : 380V/220V 50Hz

Warranty : 24 Months

Contact Now

Model	DPP-160r
Punching times	20～50 times/min
Production capacity	36000-72000 grains/hour
Maximum forming area and depth	13010015mm
Maximum depth up to	26mm (customized)

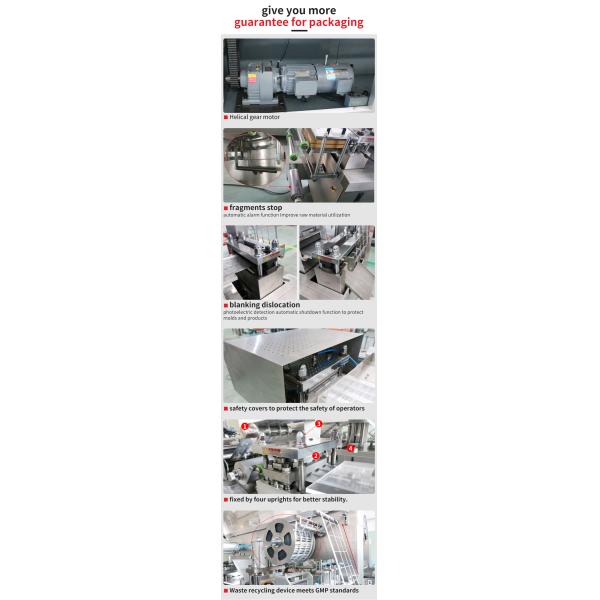

1. The three stations of forming, heat-sealing and punching are all fixed by cam box mandrel, unified horizontal positioning reference and adjustment scale, convenient for customers to adjust the alignment.
2. The three stations of forming, heat sealing and blanking are equipped with safety covers to protect the safety of operators.
3. The material of this machine has a wide range of applications, not only PVC, PS, but also PET and other materials can be used for production.
4. This machine is equipped with blanking dislocation, photoelectric detection and automatic shutdown function, this machine protects the mold and the product.
5. The PVC feeding of this machine is detected by photoelectricity and driven by a motor. The feeding amount is accurate, the traction pressure is reduced, and the overall running speed of this machine is faster.
6. The heat-sealing station of this machine adopts dual-cylinder and dual-axis linkage, and the pressure is large and balanced. The combination of PVC and aluminum foil of this machine is good, with clear lines and no wrinkles.
7. This machine adopts a new type of helical gear reducer motor, and the equipment runs stably.

8. The four-position cams of this machine, forming, heat-sealing, indentation, and punching, are made of cast steel integrally formed floor-standing box body seat, which will never be deformed, and the center of gravity of the machine's operation is stable, and each station is adjusted Lightweight and accurate.
9. 160 aluminum-plastic blister packaging machine This machine adopts a large platform design, and the power transmission and cam box are all built-in under the body, which is convenient for cleaning and maintenance of the machine after use.
10. The PVC and PTP fragments of this machine will stop and automatically alarm, which improves the efficiency of raw material utilization.
